PERFORMANCE TEST:
It is imperative to accurately measure the transom mount height for an Epropulsion outboard. Having the wrong measurement for the shaft length can drastically affect the performance of the outboard. If the measurement taken is too short for the transom mount, the propeller will not sit deep enough in the water. When the propeller does not sit deep enough in the water it will cavitate and decrease efficiency. If the measurement taken is too long for the transom mount, the propeller will sit too deep into the water. When a propeller sits too low behind a boat, it will have increased water resistance and reduced speeds.

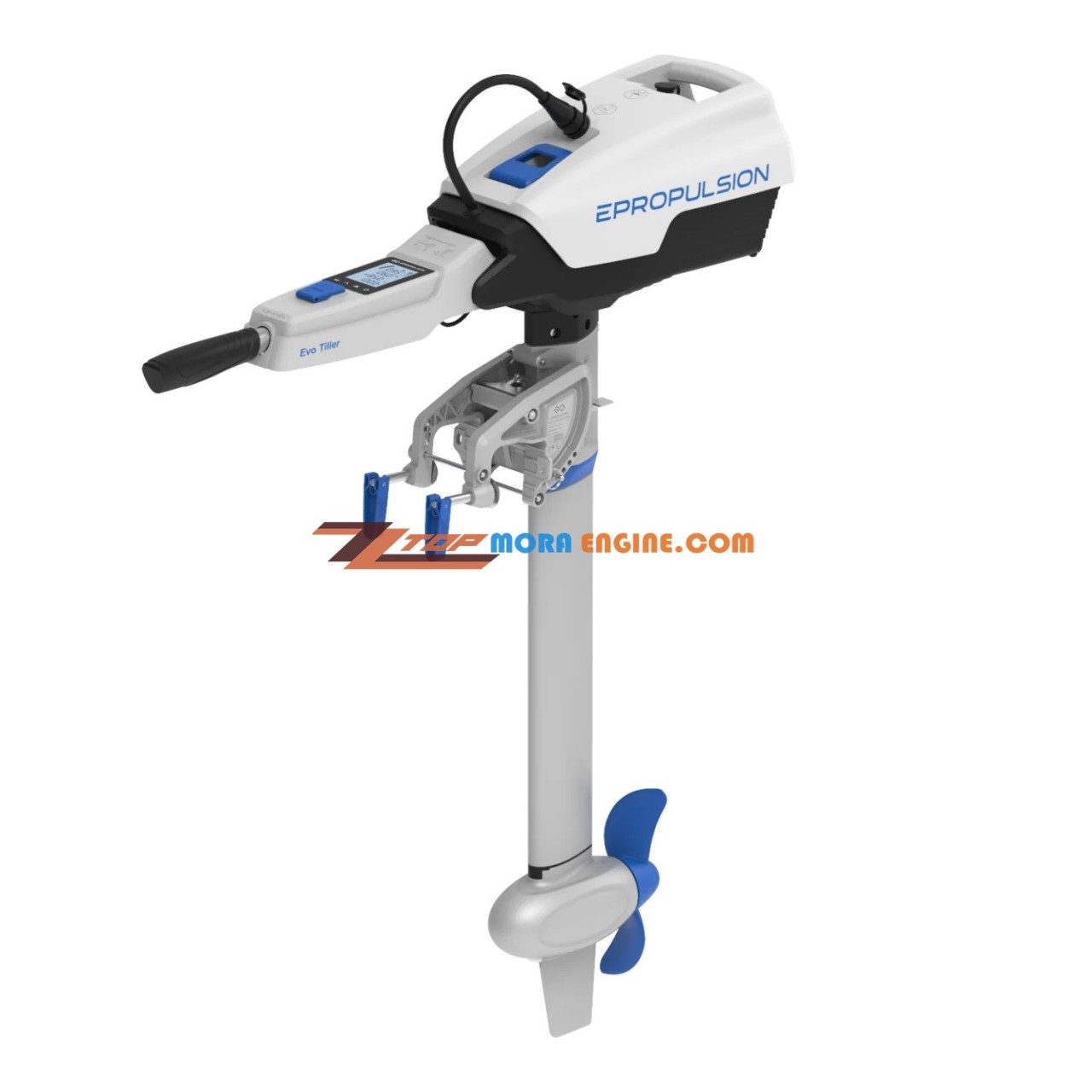

| Spirit 1.0 Evo | Spirit 1.0 Evo Remote | |
| Power | 1 kW (3HP equivalent) | 1 kW (3HP equivalent) |
| Standard Battery | Spirit Battery , 1276 Wh li-ion polymer | Spirit Battery , 1276 Wh li-ion polymer |
| Input Voltage | 39V – 60V | 39V – 60V |
| Motor Weight* | 11.3 kg / 24.9 lbs | 10.6 kg / 23.4 lbs |
| Battery Weight | 8.7 kg / 19.2 lbs | 8.7 kg / 19.2 lbs |
| Standard Charging | 8.5 Hrs | 8.5 Hrs |
| Fast Charging | 3.5 Hrs | 3.5 Hrs |
| External Battery | Yes, and E-Series Battery recommended | Yes, and E-Series Battery recommended |
| Propeller | 11″ × 5.8″ 2-blade composite propeller | 11″ × 5.8″ 2-blade composite propeller |
| Trim / Tilt Angle | 0°, 7°, 14°, 21° / 85° | 0°, 7°, 14°, 21° / 85° |
| Shaft Length | Short, Long | Short, Long |
| Control | Evo Tiller | Evo Top Mount Control / Evo Side Mount Control / Evo Dual Remote Control |
| Hydrogeneration | Yes | Yes |
| Motor | Brushless DC motor | Brushless DC motor |
| Direct Drive | Yes | Yes |
If you are looking for an ePropulsion electric outboard for your boat, choosing the correct shaft length is important.
Please note that ePropulsion has a different shaft length measurement from gas-powered outboards. For electric outboards, the shaft length is measured from the top of the clamp bracket to the center of the propeller. For gas outboards, it’s measured from the top of the clamp bracket to the anti-ventilation plate.
