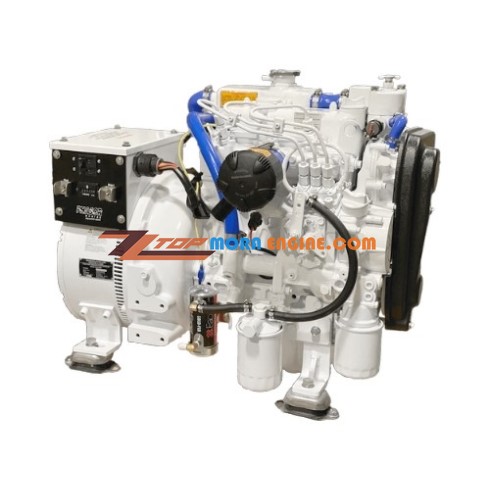

Phasor K3 8.0KW 60 Hz Marine Diesel Generator 1800 RPM Compact Series

Price:

US$8,500.00

Brand:

Phasor

Condition:

New

Availability:

Ready In Stock ( Price includes shipping cost, tax and insurance )

Shipping:

Free Shipping

Specifications

Kubota Model	D1005-E4BG
Number of Cylinders	3
Cubic Inch Displacement	61
Fuel Consumption ( Gal/Hr )	Full Load 0.74 Half Load 0.32
Electric End	Coliseum
8.0 Kw	60 Hz
Bore x Stroke	2.99 x 2.90
Dimensions (LxWxH) without enclosure	L 26.5" x W 18.0" x H 22.5"
Dimensions (LxWxH) with enclosure	30" x 22" x 25.75"
Weight (lbs.)	386
Output (volts)	120/240
Output (amps)	66/33
Output (watts)	8,000
Exhaust Dia.	2.0"
Raw Water Dia.	3/4"
Fuel Line Dia.	5/16"
Return Line Dia.	3/16"

Kubota Diesel Engine
Single Bearing Direct Coupled Generator
± 1% Solid-State Voltage Regulation
Low 1,800 RPM Operating Speed
Safety Shutdown System for High Coolant Temperature or Low Lube Oil Pressure
Single Series Circuit Control System with No Printed Circuit Boards – Tinned Wiring
Fresh Water Double Pass Heat Exchanger
Water Cooled Exhaust Manifold with Removable Integral Cupro-Nickel Heat Exchanger Core
Zinc Anode in Heat Exchanger
Stainless Steel Exhaust Elbow Cast
Gear Driven Raw Water Pump
Four Point Isolation Mounts S/S
Molded Blue Silicone Water Hoses with Stainless Steel AWAB Clamps
Air Intake Cleaner / Silencer
Spin-On Lube / Fuel Filters
Secondary 5 Micron Fuel Filter
Self Bleed Fuel System
USCG Approved Fuel Lines
Electric Fuel Transfer Pump
Forged Brass Oil Drain Valve with Safety Lock
Awl-Craft 2000 Urethane Finish
5 Year Limited Warranty
Belt Guard
