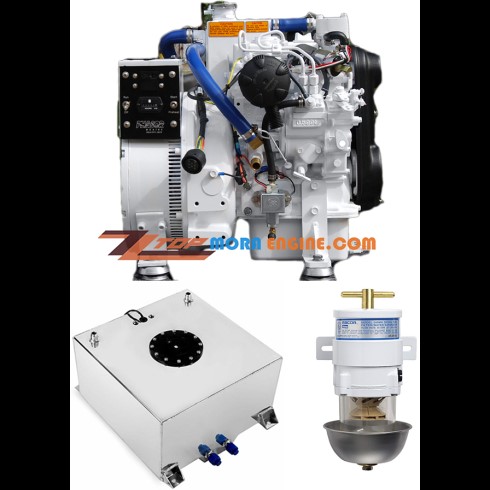

Phasor k2 4.5pmg kit Marine Generator Includes Fuel Tank and Filter 4.5 KW 60 Hz Ignition Protected
Price:
US$7,100.00
Brand:
Condition:
New
Availability:
Ready In Stock ( Price includes shipping cost, tax and insurance )
Shipping:
Free Shipping
Product Description
Generator Standard Features
- Kubota Diesel Engine Single Bearing Direct Coupled Generator
- Low 1800 RPM Operating Speed
- Safety Shutdown System for High Coolant Temperature or Low Lube oil Pressure
- Single Series Circuit Control System with No Printed Circuit Boards-Tinned Wiring
- Fresh Water Double Pass Heat Exchanger
- Water Cooled Exhaust Manifold w/ Removable Integral Cupro-Nickel Heat Exchanger Core
- Zinc Anode in Heat Exchanger
- Stainless Steel Exhaust Elbow Cast
- Gear Driven Raw Water Pump
- Four Point Isolation Mounts S/S
- Molded Blue Silicone Water Hoses with Stainless Steel AWAB Clamps
- Air Intake Cleaner / Silencer
- Main Line Circuit Breaker
- Spin-On Lube / Oil Filter
What does the kit include?
- Phasor 4.5 KW Ignition Protected generator
- 10 Gal Aluminum fuel tank with the option to add a 0-90 ohms sender
- 500MA Racor Paker fuel filer
Generator Specifications
| Kubota Model | Z602-E4B |
| Number of Cylinders | 2 |
| Cubic Inch Displacement | 36.55 |
| KW Rating at 60 Hz | 4.5 |
| KW Rating at 50 Hz | 3.5 |
| Electric End | Coliseum |
| Bore x Stroke | 2.83" X 2.90" |
| Dimensions (LxWxH) without enclosure | 20" x 17" x 22" |
| Dimensions (LxWxH) with enclosure | 26" x 20" x 24.2" |
| Weight (lbs.) | 294 |
| Output (volts) | 120/240 |
| Output (amps) | 38/19 |
| Output (watts) | 4500 |
| Exhaust Dia. | 2.0" |
| Raw Water Dia. | 3/4" |
| Fuel Line Dia. | 5/16" |
| Return Line Dia. | 3/16" |
Fuel Tank Specifications
| Material | Aluminum |
| Tank Measures | 16.5" (L) x 16.5" (W) x 9.25" (H) |
| Sump Measures | 6" x 6" x 2" Deep |
| Capacity | 10 Gal / 40L |
| Fuel Sender | 0-90 Ohm |
| Anti-slosh Foam Included | Silver |
Racor Fuel Filter Specifications
| Model | 500MA |
| Microns | 2,10, or 30 |
| Flow Rate | 60 GPH |
| Number of Housings | 1 |
| Clean Pressure Drop (bar) | 0.02 |
| Clean Pressure Drop (psi) | 0.34 |
| Number of Ports | 2 |
| Replacement Element | 2010 Series (Requires 1) |
| Application | Marine Fuel Filtration |
| Maximum Continuous Pressure | 15 psi / 1.03 bar |
| Element Removal Clearance | 4 in / 10.2 cm |
| Dimensions | 10.820 H x 4.550 W |
Generator Optional Equipment
- Custom Remote Engine/ Generator Instrument Panels
- Stainless Steel Drip Pan
- 24 Volt Starting System
- Powered Coated Aluminum
- Sound Attenuated Enclosure
- Sound Insulation Blanket
- Remote Oil Filter Kits
- Custom Chrome Packages
- Spare Parts Kit
Warranty Information
5 Years
