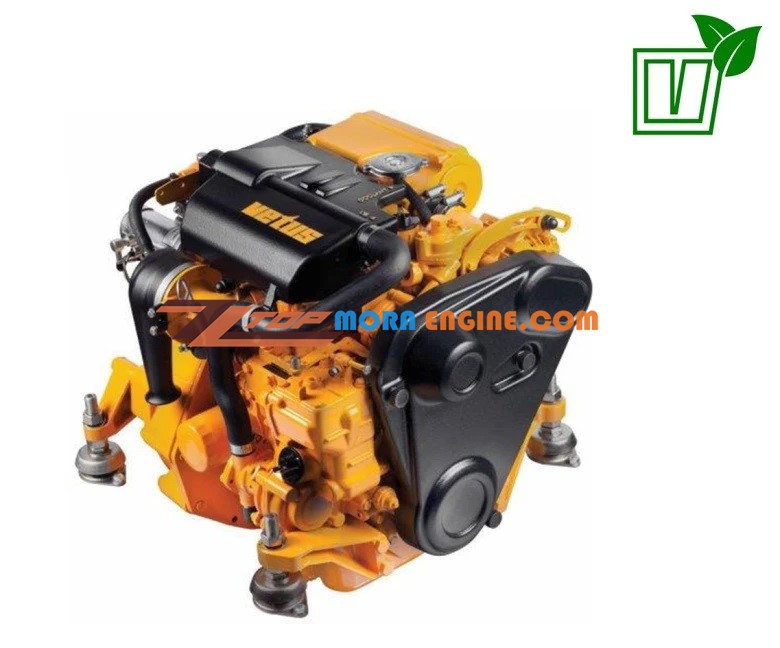

The new Vetus Mitsubishi M2.13 is a superbly quiet, compact and reliable 2 cylinder marine diesel inboard engine. The model shown here is the inter-cooled version with Technodrive TMC40 Gearbox - ideal for small sailboats.
Simple to install - and easy to maintain, with all service items grouped on one side. The M2.13 ships with an attractive, waterproof key-switch panel (2m extendable hard-wired loom) with warning lights for low oil pressure, high water and exhaust temperature.

Specifications:

• Model : M2.13 IDI/4 stroke/2cyl NA Diesel
• Stroke : 70mm/2.8 inch
• Bore : 76 mm
• Capacity : 635 cm³
• Number of Cylinders : 2
• Compression Ratio : 23:1
• Firing Order : 1-2
• Alternator : 12 v 75 A
• Max Output at Flywheel/Propshaft : 8.8 kW (12.6hp)/7.9 kW (10.7hp)
• Maximum RPM : 3000
• Torque at Max RPM : 32.7 Nm
• Fuel Consumption : 268 g/kW.h (196 g/hp.h)
• Gearbox : Technodrive TMC40 Gearbox
• Dry Weight (inc Gearbox) : 98 kg/216 lbs
• Fuel pump lift height : 1.5m/5 ft
• Calorifier Connection : Optional (STM6235)
• Warning Lights/Audible Alarms : Oil Pressure, Water Temperature (Raw & Fresh), Charge Current
• Cooling System : Indirect Sea-Water cooling

Package Includes:

• New Vetus M2.13 engine 12 HP
• Twin Disc Technodrive TMC40 Gearbox
• Alternator 12 v 75 A
• Waterproof key-switch panel
• 2m extendable hard-wired loom
• Engine mounts
• Oil sump pump
